当前位置: 首 页 / 产品中心/中式厨用风机/energy-saving stove blower/120W
吸风散热
动力源源不断
超静音
高强度
FOCUS ON WIND
CREATE THE VALUE
专注风的价值 · 为客户创造价值
好风机
永强造
3
SIZE

AVAILABLE

三种安装尺寸

1.输入功率/power:120W           2.电压/voltage:220V
3.转速/speed:2800r/min²       4.风压/pressure:700Pa
5.风量/air flow:250m³/h          6.噪音/noise:65dB(A)
7.电源线长度/wire length:0.8m

产品特性描述:

       厨用油汽灶以体积小,风量足,耐温防水

安装方便而著称,对节能灶和工程灶个性

化设计提供全方位配套。产品噪音低,效

率高,寿命长。

Product characteristics

    Energy-saving stoves are famous for their small size, sufficient air volume, temperature resistance, waterproof and convenient installation. They are especially suitable for energy-saving stoves and engineering stoves. The modern design provides a full range of supporting facilities. The product has low noise, high efficiency and long service life.

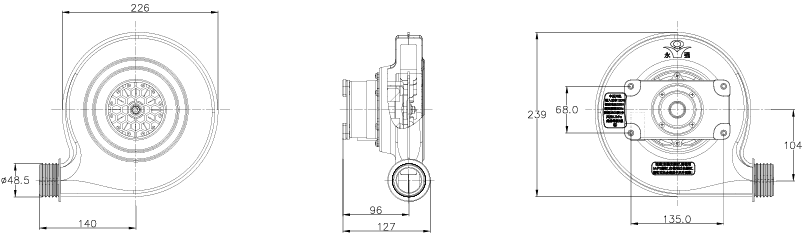

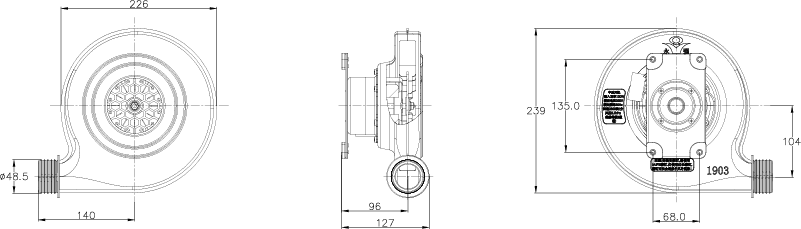

产品尺寸及参数
PRODUCT PARAMETERS
产品编码:8.06.11.01.02.0002
安装方式:立式板水平
产品编码:8.06.11.01.02.0001
安装方式:立式板垂直
产品编码:8.06.11.01.02.0009
安装方式:折边板
风机性能参数:
产品编码 产品名称 电压(V) 输入功率(W) 转速(r/min) 风量(m³ /h) 风压(Pa) 噪音(dBA)
8.06.11.01.02.0001 120W中式厨用风机C款/立式板垂直 220 120 2800 250 700 65
8.06.11.01.02.0002 120W中式厨用风机C款/立式板水平 220 120 2800 250 700 65
8.06.11.01.02.0009 120W中式厨用风机C款/折边板 220 120 2800 250 700 65
产品特性描述
PRODUCT CHARACTERISTICS

      厨用油汽灶风机以体积小,风量足,耐温防水、安装方便而著称,对节能灶和工程灶个性化设计提供全方位配套。产品噪音低、效率高、寿命长。

  Energy-saving stoves are famous for their small size, sufficient air volume, temperature resistance, waterproof and convenient installation. They are especially suitable for energy-saving stoves and engineering stoves. The modern design provides a full range of supporting facilities. The product has low noise, high efficiency and long service life.
