当前位置: 首 页 / 产品中心/干燥机/dryer blower/PF200B
吸风散热
动力源源不断
超静音
高强度
FOCUS ON WIND
CREATE THE VALUE
专注风的价值 · 为客户创造价值
好风机
永强造
2
SIZE

AVAILABLE

两种安装尺寸
1.输入功率/power:346W           2.电压/voltage:220V

3.转速/speed:2800r/min²       4.风压/pressure:880Pa

5.风量/air flow:980m³/h          6.噪音/noise:80dB(A)

7.电源线长度/wire length:0.9m

产品特性描述:

       干燥机风机因其蜗壳采用冷板冲裁而成

重量轻,风量大,适合塑料机械干燥/

鼓风/吸尘,适合单相和三相用电,效

率高,寿命长。

Product characteristics

     The blower of the dryer is light in weight and large in air volume because of its volute made of cold plate punching, suitable for plastic machinery drying/blast/vacuum , suitable for single-phase and three-phase electricity, high efficiency and long service life.

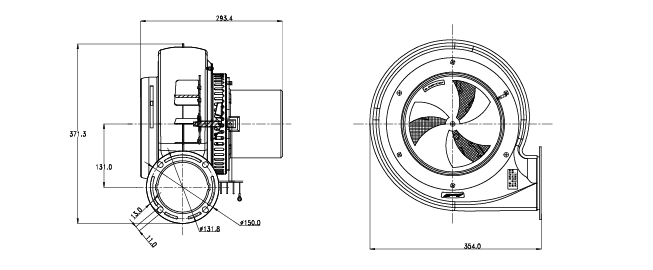

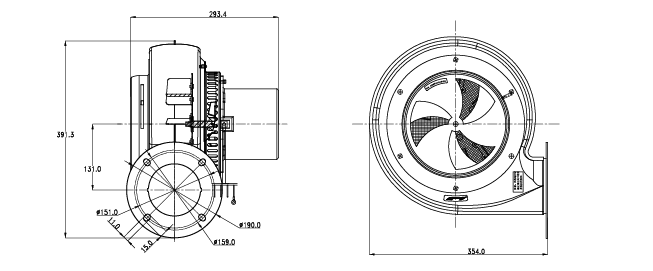

产品尺寸及参数
PRODUCT PARAMETERS
产品编码:8.28.07.01.02.0001
安装方式:法兰安装
产品编码:8.28.07.01.02.0003
安装方式:法兰安装
风机性能参数:
产品编码 产品名称 电压(V) 输入功率(W) 转速(r/min) 风量(m³ /h) 风压(Pa) 噪音(dBA)
8.28.07.01.02.0001 PF-200BT干燥机Φ190四孔/铜线 220 346 2800 980 880 80
8.28.07.01.02.0003 PF-200BT干燥机Φ150四孔/铜线 220 346 220 980 880 80
产品特性描述
PRODUCT CHARACTERISTICS

  干燥机风机因其蜗壳采用冷板冲裁而成、重量轻风量大。适合于塑料机械干燥/鼓风/吸尘,适合单相和三相用电,效率高,寿命长。

     The blower of the dryer is light in weight and large in air volume because of its volute made of cold plate punching, suitable for plastic machinery drying/blast/vacuum , suitable for single-phase and three-phase electricity, high efficiency and long service life.
